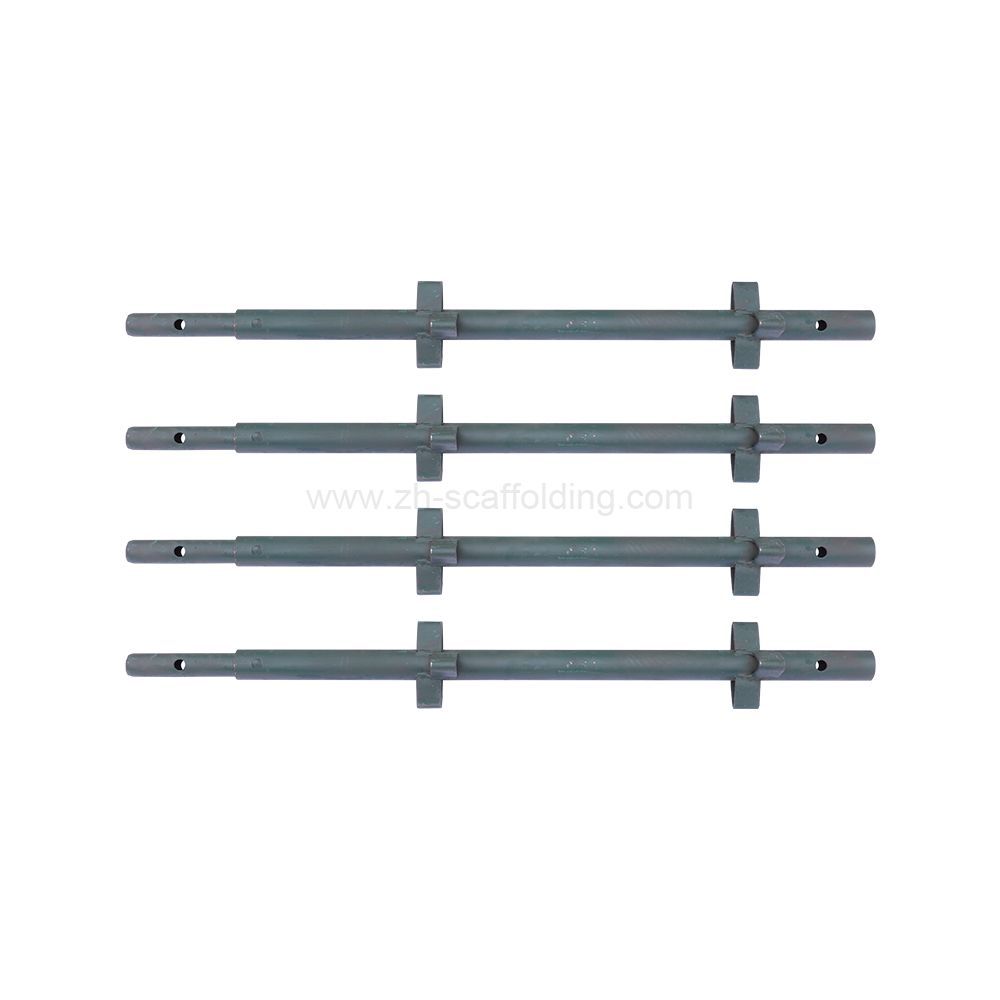

| Kwikstage Scaffolding System upright tube |
| Ledger(P.G.)(H.D.G.)mm | Size(mm) | KG（H.D.G） | KG（P.C） |
| 48.3*3.25 | 500 | 3.63 | 3.53 |
| 48.3*3.25 | 1000 | 6.56 | 6.37 |
| 48.3*3.25 | 1500 | 9.48 | 9.21 |
| 48.3*3.25 | 2000 | 12.4 | 12.02 |
| 48.3*3.25 | 2500 | 15.33 | 14.86 |
| 48.3*3.25 | 3000 | 18.25 | 17.7 |

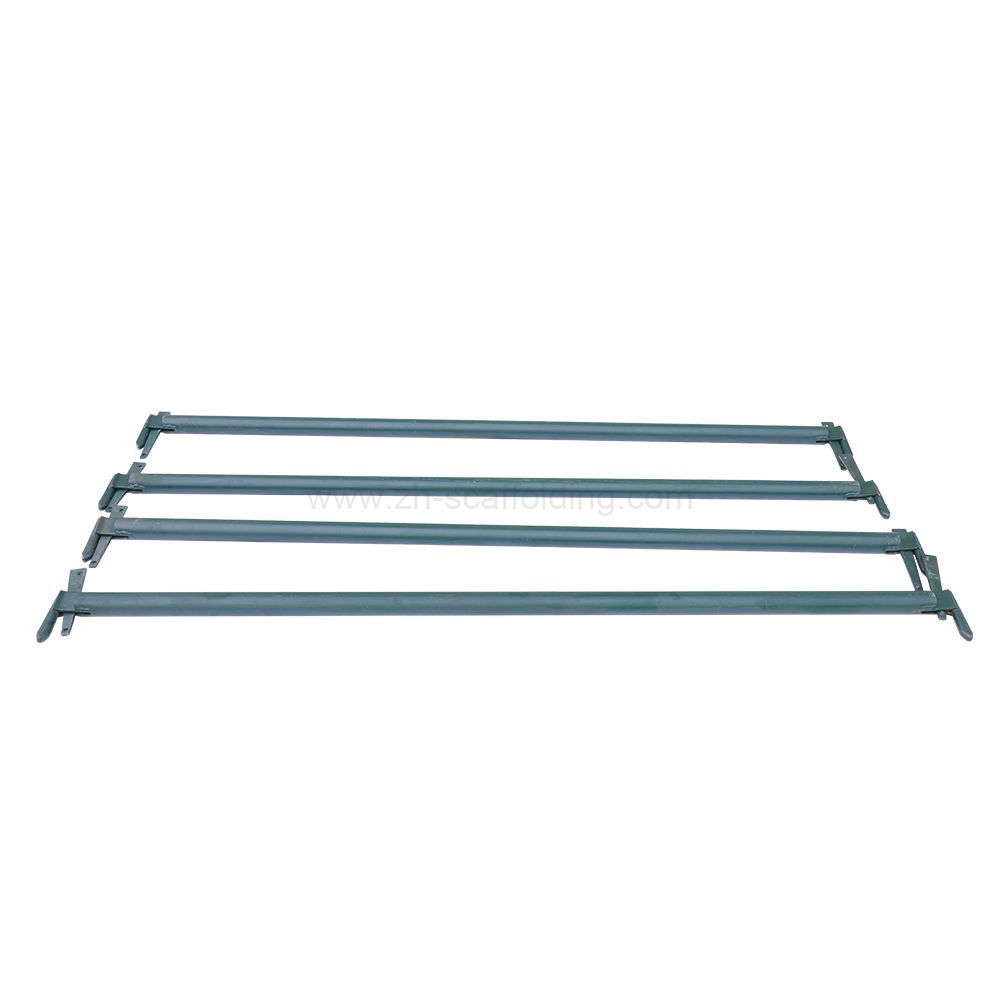

| Kwikstage Scaffolding System cross bar |
| STD/Ledger(P.G.)mm | Size(mm) | KG（H.D.G） | KG（P.C） |
| 48.3*3.25 | 500 | 2.87 | 2.79 |
| 48.3*3.25 | 700 | 3.58 | 3.48 |
| 48.3*3.25 | 800 | 3.76 | 3.66 |
| 48.3*3.25 | 1000 | 4.44 | 4.31 |
| 48.3*3.25 | 1200 | 5.39 | 5.24 |
| 48.3*3.25 | 1800 | 7.38 | 7.17 |
| 48.3*3.25 | 2400 | 9.54 | 9.27 |

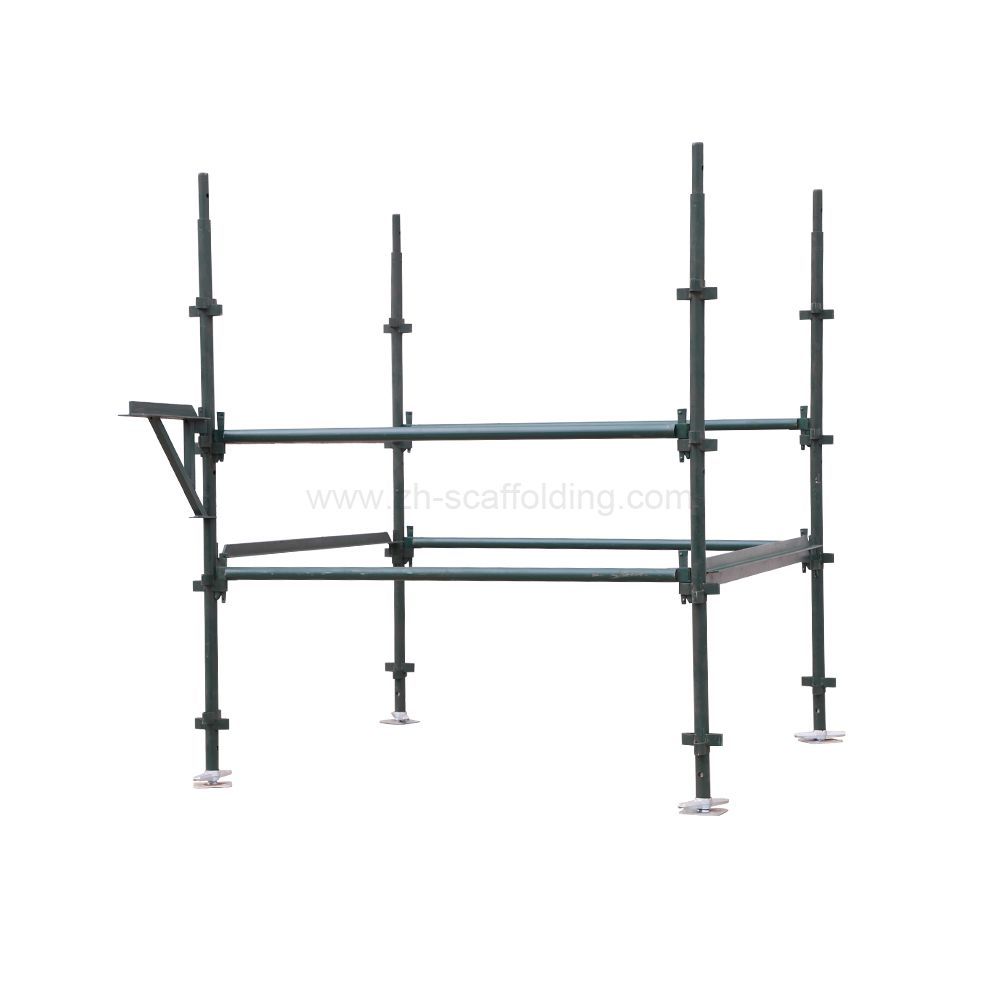

Kwikstage is a kind of modular scaffolding system, which is versatile and serves various purposes. This kind of scaffolding system is highly useful in situations where the facade of the building is complex, and a regular facade scaffold cannot be positioned. Kwikstage Scaffolding System is high, convenient disassembly, weighing capacity, functional diversity, star type scaffold standard connection point for 4 high strength steel plate stamping triangle iron.

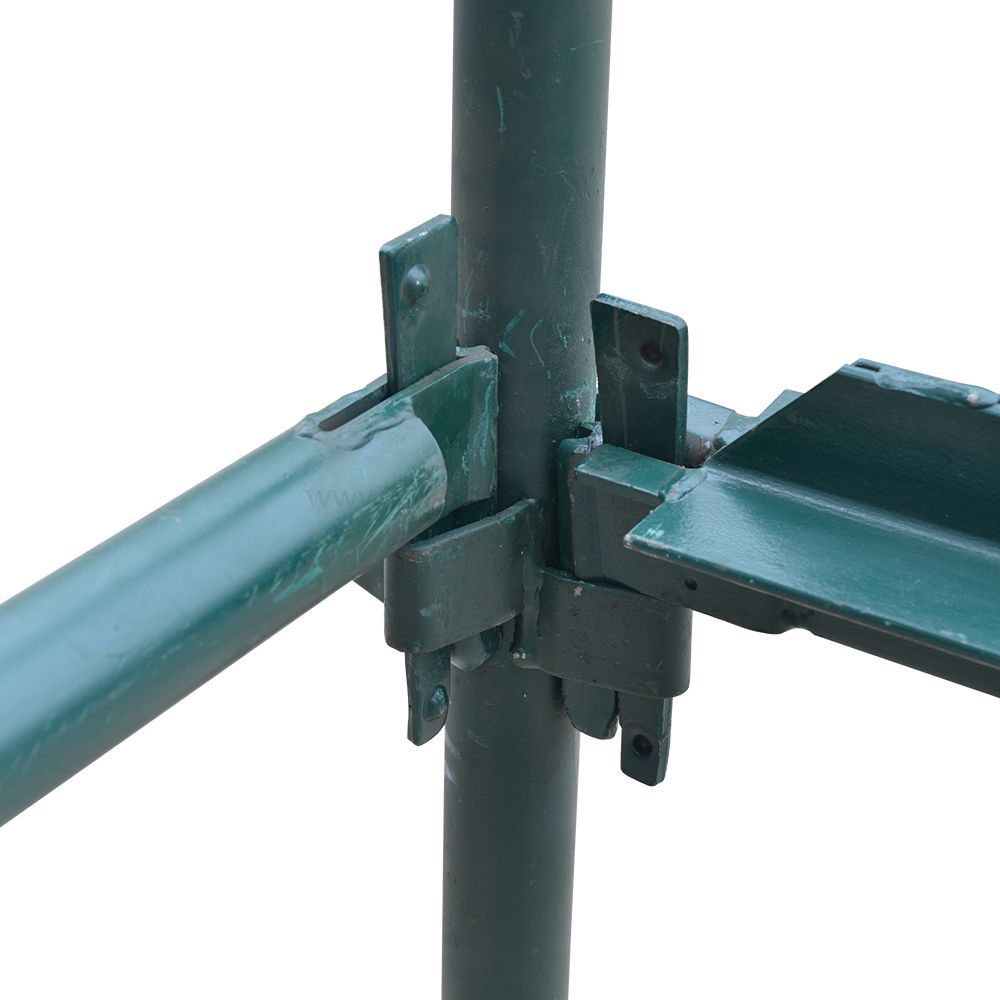

The two ends of the Kwikstage Scaffolding System are welded with oblique iron, the cross plug and the steel pipe contact range is large, with two-way locking function, can effectively improve the overall strength and safety of the star scaffold, better meet the construction safety.
Applications
Its adaptability and speed of installation allows it to be used in a wide range of applications from house building to large industrial applications, from towers to platforms, as well as for general purpose and inspection in light or heavy access.
Features
Simple: consists of highly standardised modular components.
Safe: it provides a high degree of rigidity
Versatile: it can be moulded into any shape to suit the structure of the building. The Rapid Stage can also be flexibly installed on either side of the building façade to make the project as simple as possible.
Easy to maintain: most connections are made with wedge-shaped fixings, which are very simple to use, extending the life of the product and reducing service costs.
